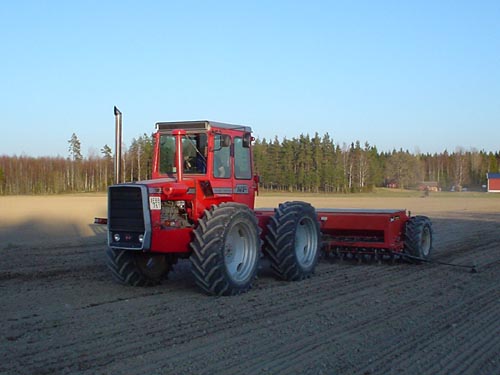

MF 1250

MASSEY FERGUSON 1250

Manufacturer  Massey Ferguson, Manchester, England
Years of manufacturing                            1980-1982

Engine

Engine,Type A6.354.4
Number of cylinders 6
Cylinder, bore 98,5 mm
Cylinder, stroke 127 mm
Displacement 5,8 litres
Rated rpm 2500 rpm
Horsepower 112 hp
Horsepower, pto 96 hp
Torque 370 Nm

Clutch

Type Singel disc
Diameter 330 mm

Transmission

Type Mechanical with hydraulically fast gear
Numbers of gears 12 forward 4 backward

Tires

Front and rear 16,9 x34/8

Breake

Type Hydraulically wet discs

Hydraulicsystem

3 point hitch Category 2,
Liftcapacity 42,900 N

PTO

Type  1000 rpm

Dimensions

Lenght 5,170 mm
Width 2,030 mm
Height 2,950 mm
Wheelbase 2,560 mm
Turning radius 3,720 mm

Capacities

Fuel 318 litres
Coolingsystem 18 litres
Enging, oil 15,3 litres
Rearaxel, oil 33 litres

Weight

Weight 6,275 kg
Weight on frontaxel 4,100 kg
Weight on rearaxel 2,175 kg
