MF 4880
)
)
)
)

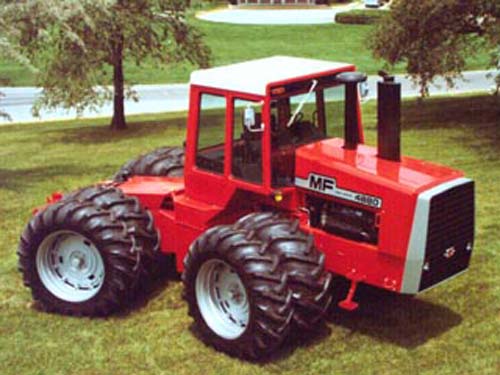

MASSEY FERGUSON 4880
| Manufacturer | Massey Ferguson, Ontario, Canada |
| Years of manufacturing | 1979-1986 |
Engine
| Engine, Type | Cummins, V-903 |
| Number of cylinders | V8 |
| Cylinder, bore | 140 mm |
| Cylinder, stroke | 121 mm |
| Displacement | 14.8 litres |
| Rated rpm | 2600 rpm |
| Horsepower | 320 hp |
| Horsepower, pto | 272 hp |
| Torque | Nm |
Clutch
| Type | Oilcooled, multidisc |
| Diameter | 350 mm |
Transmission
| Type | Mecanical with 3 speed power shift |
| Number of gears | 18 gears |
Tires
| Front and rear, singels | 24.5-32 , 30.5-32 |
| Front and rear, duals | 18.4-38 , 20.8-38 , 23.1-34 |
Breake
| Type | Hydraulically disc on driveline |
Hydraulicsystem
| 3 point hitch lift | Electrical operated |
| Liftcapacity | 5.890 kg |
PTO
| Type | 1000 rpm |
Dimensions
| Length | 6.500 mm |
| Width | 2.740 mm |
| Height | 3.300 mm |
| Wheelbase | 3.500 mm |
| Turning radius | 5.200 mm |
Capacities
| Fuel | 719 litres |
| Coolingsystem | 58.8 litres |
| Engine, oil | 31,7 litres |
| Transmission, oil | 47.4 litres |
| Rearaxel, oil | 83.4 litres |
| Frontaxel, oil | 41.6 litres |
| Steering reservoir | 110 litres |
Weight
| Weight | 12.050 kg |
