MF 4900

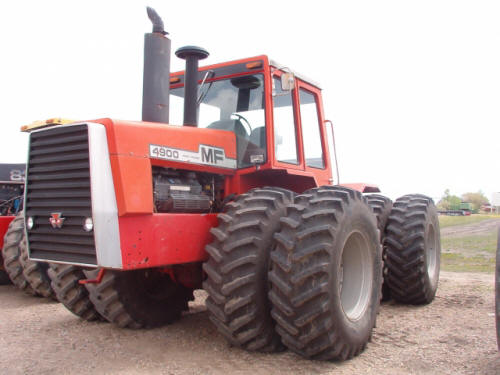

MASSEY FERGUSON 4900

Manufacturer  Massey Ferguson, Ontario, Canada
Years of manufacturing 1980-1986

Engine

Engine, type Cummins, V-903
Numbers of cylinders V8
Cylinder, bore 140 mm
Cylinder, stroke 121 mm
Displacement 14,8 litres
Rated, rpm 2600 rpm
Horsepower 375 hp
Horsepower, pto 320 hp
Torque  Nm

Clutch

Type

Oilcooled, multidisc

Diameter

350 mm

Transmission

Type Mecanical with 3 speed power shift
Number of gears 18 gears

Tires

Front and rear, singels 24.5-32 , 30.5-32
Front and rear,duals 18.4-38 , 20.8-38 , 23.1-34

Breake

Type Hydraulically disc on driveline

Hydraulicsystem

3 point hitch lift

PTO

Type 1000 rpm

Dimensions

Length 6.500 mm
Width 2.740 mm
Height 3.300 mm
Wheelbase 3.500 mm
Turning radius 5.200 mm

Capacities

Fuel 719 litres
Coolingsystem 58.8 litres
Engine, oil 31,7 litres
Transmission, oil 47.4 litres
Rearaxel, oil 83.4 litres
Frontaxel, oil 41.6 litres
Steering reservoir 110 litres

Weight

Weight 12.050 kg
